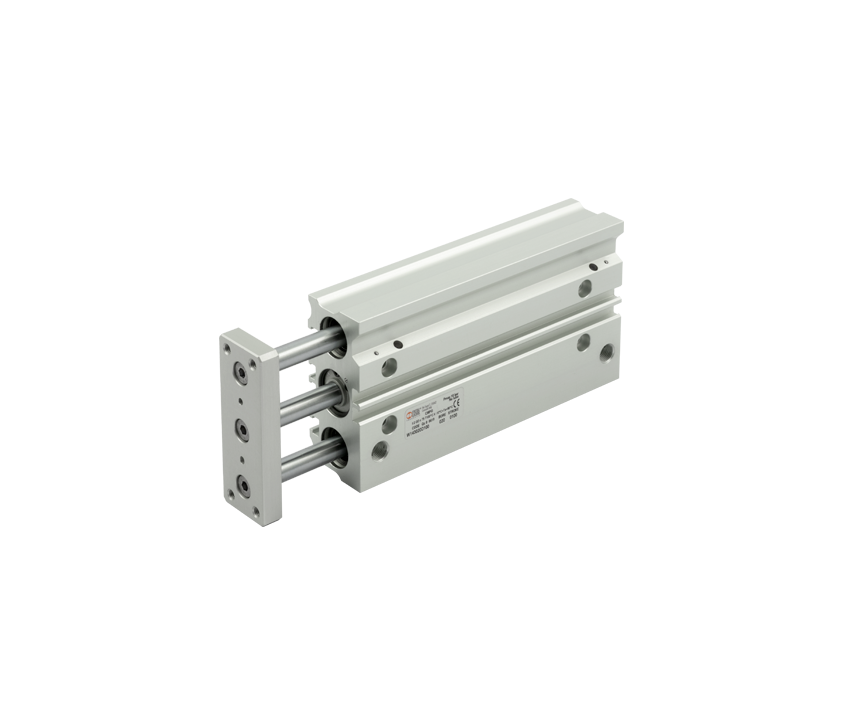

Compact guided cylinder series Multifix

This functional and heavy-duty cylinder is a further development of the well-known and proven CMPG series. It is designed to allow the fixing on multiple sides using different methods, compressed air supply on both sides and double sensor slots, on both the upper and lower side.
The bushing guides of the piston rods are fitted directly into the anodized aluminium alloy cylinder liner.
There are two possible guiding solutions: sintered bronze bushings coupled with piston rods made of ground chromed carbon steel or ball recirculating bushings coupled with hardened, chromed and ground steel.
A silenced version with elastic end-stroke elements and a version with pneumatic cushioning with adjustable pins to control the braking are also available.
